Green Silicon Carbide Grinding Wheel: The Ultimate Guide for Precision Grinding
Green Silicon Carbide Grinding Wheel: The Ultimate Guide for Precision Grinding
2025-04-09 10:06:29

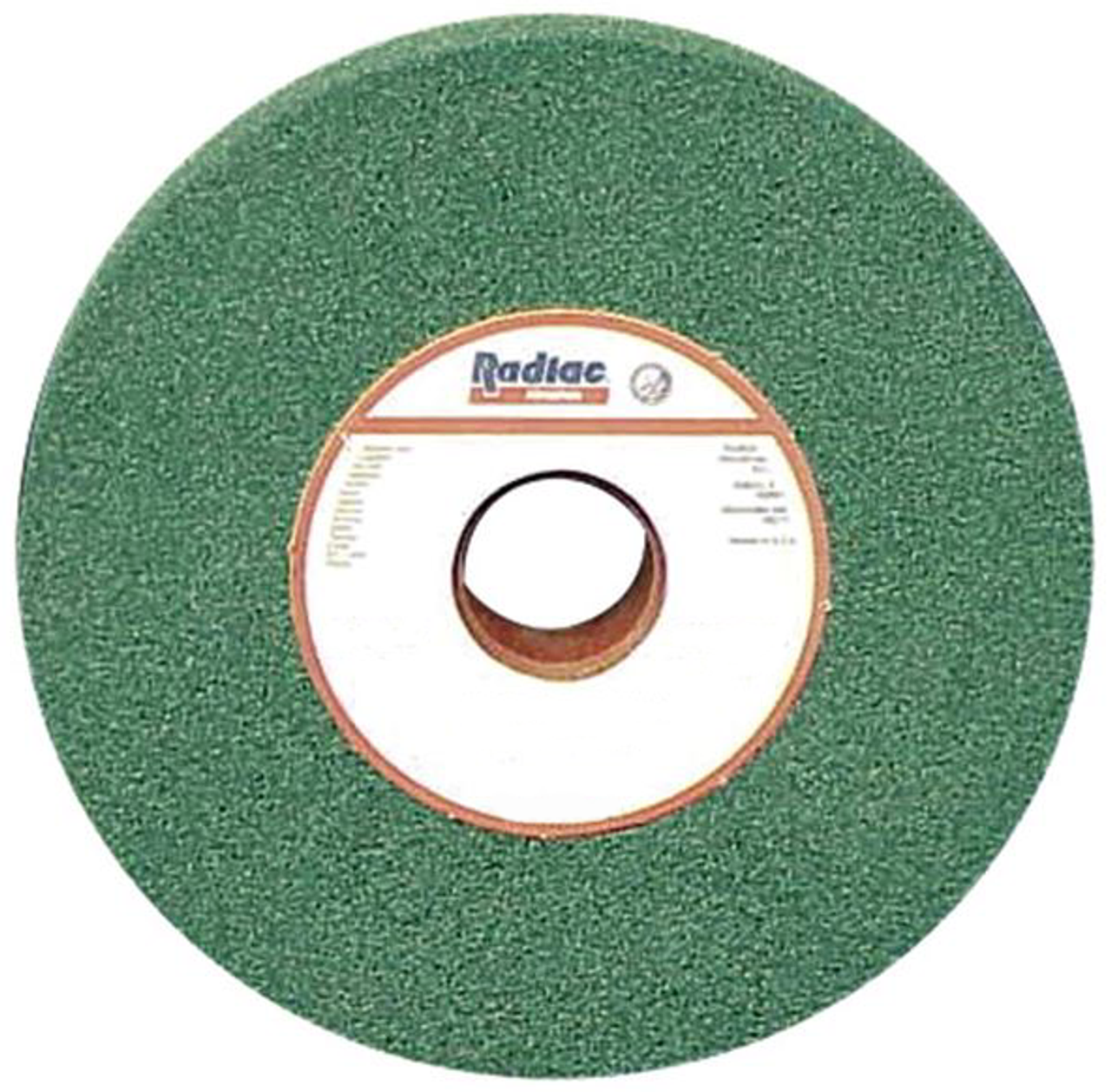

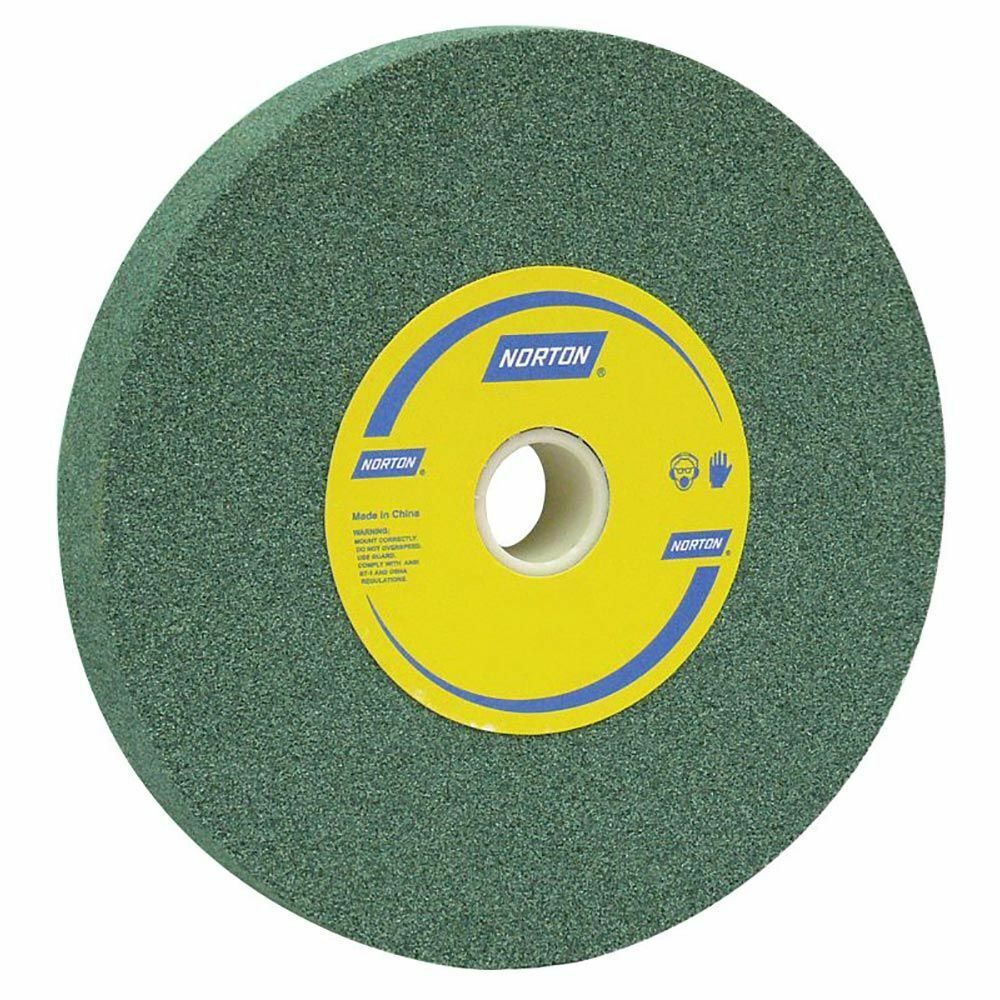

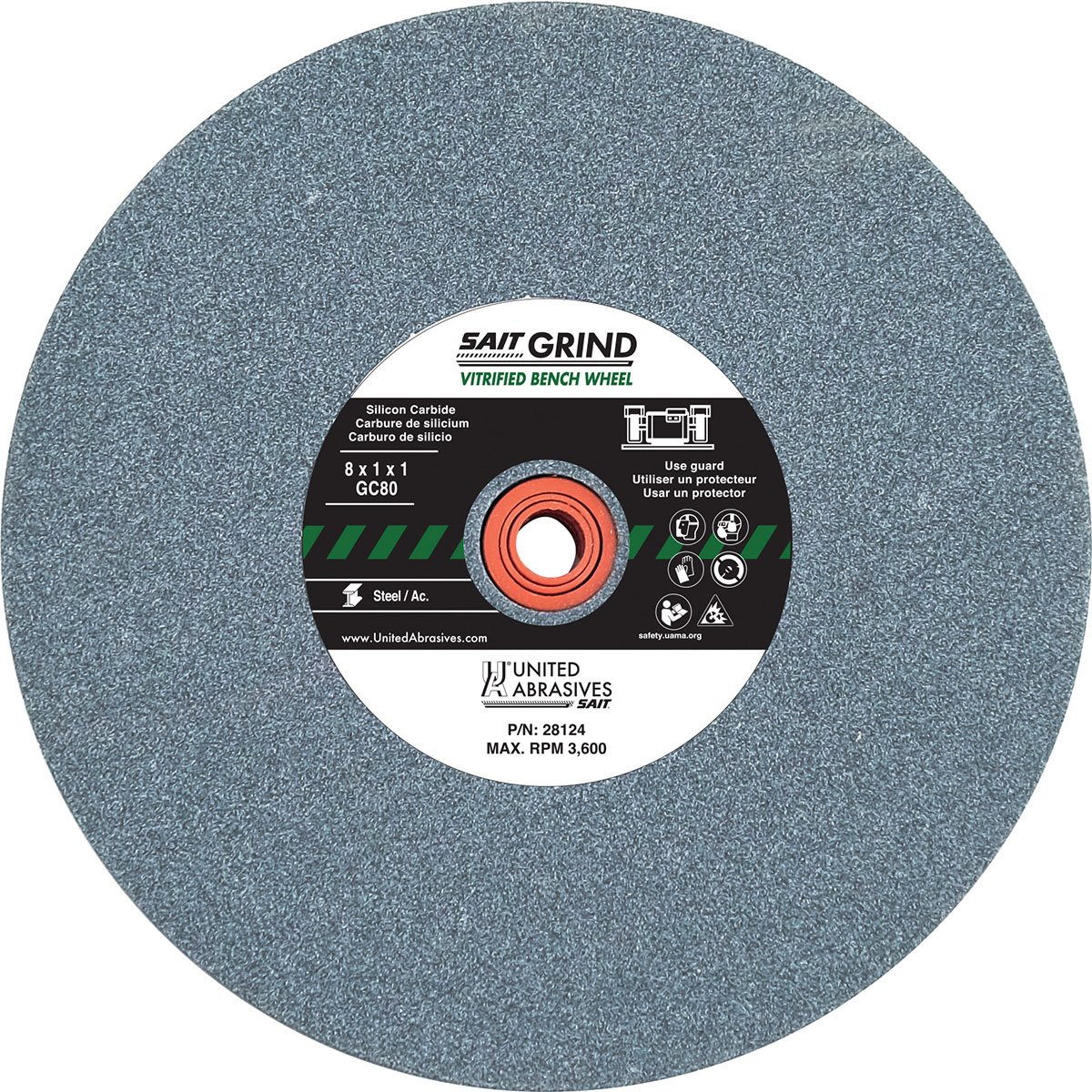

What is a Green Silicon Carbide Grinding Wheel?
A green silicon carbide grinding wheel is a specialized abrasive tool made from high-purity green silicon carbide (SiC) crystals. These wheels are highly effective in grinding hard and brittle materials. Their green hue comes from the manufacturing process that uses high-temperature fusion to produce SiC from silica sand and petroleum coke with an addition of salt. This results in a product that's exceptionally hard, brittle, and thermally conductive.
Composition and Materials
Green silicon carbide contains over 99% silicon carbide, making it ideal for tasks requiring high precision and minimal contamination. It's non-ferrous and non-magnetic, making it safe for specialized electronics and ceramics applications.
Unique Properties of Green Silicon Carbide
Extreme hardness (second only to diamond)
Sharp cutting edges
High thermal conductivity
Chemical inertness
These properties make it a go-to for materials that other abrasives struggle with, such as ceramics, carbide tools, and glass.
Advantages of Using Green Silicon Carbide Wheels
High Hardness and Sharpness: The crystalline structure of green SiC allows it to stay sharp longer, cutting faster and cooler than other abrasives. This leads to fewer tool changes and increased productivity.
Superior Heat Resistance: Thanks to its thermal conductivity, it dissipates heat quickly, reducing the risk of burns or damage to heat-sensitive materials.
Environmentally Friendly Choice: Unlike some synthetic abrasives, green silicon carbide is often produced with minimal waste and lower emissions, aligning well with eco-conscious manufacturing processes.
Applications of Green Silicon Carbide Grinding Wheels
Green silicon carbide wheels shine in industries that demand precision and care with delicate materials:
Glass and Ceramic Grinding: These wheels can polish and shape glass without causing cracks or chips.
Carbide Tool Sharpening: They are widely used in tool rooms for sharpening tungsten carbide tools due to their hardness.
Stone and Non-Ferrous Metal Finishing: They provide a smooth finish on soft metals and decorative stones without damaging the workpiece.
Comparison with Other Abrasive Grinding Wheels
Understanding how green silicon carbide stacks up against other common abrasives helps in choosing the right tool for your needs.
Green Silicon Carbide vs. Black Silicon Carbide
While both are silicon carbide-based, green SiC is purer and sharper. Black SiC is slightly softer and used for general-purpose grinding, whereas green SiC is preferred for precision applications like grinding hard carbides and ceramics.
Green Silicon Carbide vs. Aluminum Oxide Wheels
Aluminum oxide is tough and suitable for steel and ferrous metals. However, it wears down faster and heats up more easily than green silicon carbide when used on harder materials.
Green Silicon Carbide vs. Diamond Grinding Wheels
Diamond wheels are harder and longer-lasting but also much more expensive. Green silicon carbide is often chosen as a cost-effective alternative, especially for light- to medium-duty grinding tasks.
Types and Grit Sizes Available
Green silicon carbide grinding wheels come in various forms and configurations to suit different applications:
Coarse, Medium, and Fine Grit:
Coarse (16-46 grit): Ideal for heavy material removal.
Medium (60-80 grit): Suitable for general grinding and shaping.
Fine (100-220 grit and up): Best for finishing and polishing work.
Bond Types (Vitrified, Resin, Rubber):
Vitrified bonds offer rigidity and precision.
Resin bonds provide flexibility and reduce chipping.
Rubber bonds are quieter and suitable for smoother finishes.
Choosing the Right Green Silicon Carbide Grinding Wheel
Selecting the right grinding wheel can significantly impact performance and finish quality.
Based on Material to Be Ground: Use coarse grit for ceramics or hard stone, fine grit for delicate materials like glass or precision carbide tools.
Matching Grit Size to Application: High-grit wheels are ideal for polishing, while lower-grit ones remove material quickly. Consider what stage of processing you are at.
RPM and Machine Compatibility: Always match the wheel’s maximum RPM to the machine. Using a wheel at higher speeds than it’s rated for can lead to breakage or injury.
Proper Usage and Safety Guidelines
Safe operation is essential when working with grinding wheels.
Mounting and Balancing: Ensure the wheel is correctly mounted and balanced before use. Imbalance can cause vibrations and reduce tool life.
Personal Protective Equipment (PPE): Always wear safety glasses or a full-face shield, gloves, hearing protection, and a dust mask or respirator.
Maintenance and Storage Tips
Cleaning and Dressing the Wheel: Remove built-up material with a dressing stick or diamond dresser to maintain efficiency and accuracy.
Ideal Storage Conditions: Store wheels in a dry, temperature-controlled environment. Avoid stacking them to prevent warping or cracking.
Top Brands and Manufacturers
Here are some industry leaders known for producing high-quality green silicon carbide grinding wheels:
Basic wheels start at around $5–$10, while high-end industrial wheels can exceed $100, especially for larger diameters or specialized bonds.
FAQs about Green Silicon Carbide Grinding Wheels
Q1: Is it safe for steel? A: It's better suited for non-ferrous metals and hard non-metallics, but it can be used on steel in specific applications with proper technique.
Q2: Can I use it on wood? A: No, it’s not recommended for wood. Use a softer abrasive like aluminum oxide or sanding paper.
Q3: How long does it last? A: Depending on use, a green silicon carbide wheel can last from several weeks to months in regular workshop use.
Q4: What’s the best grit for sharpening? A: Typically, 80–120 grit is good for sharpening carbide tools or fine edges.
Q5: Is it waterproof? A: Yes, green silicon carbide wheels can be used with water or coolant for wet grinding.
Q6: Can it be used wet or dry? A: Yes, they work well in both wet and dry grinding environments.
Conclusion: Why Choose a Green Silicon Carbide Grinding Wheel?
Green silicon carbide grinding wheels are a powerhouse in the world of abrasives. Their ability to handle hard, brittle, and heat-sensitive materials with precision makes them indispensable across industries—from tool manufacturing to artistic crafting. Whether you're a seasoned machinist or a curious DIYer, incorporating this type of grinding wheel into your workflow ensures cleaner finishes, faster results, and long-term savings.
