How is Silicon Carbide Made: A Powerful Guide to Its Production Process

2025-04-10 11:30:05

Introduction to Silicon Carbide (SiC)

What is Silicon Carbide?

Silicon carbide, commonly known by its chemical formula SiC, is a compound made from silicon and carbon atoms. It’s an extremely hard material, ranking just below diamond on the Mohs hardness scale, making it ideal for a variety of tough applications.

Historical Overview

The first production of silicon carbide was accidental, discovered by Edward Acheson in 1891 while trying to create artificial diamonds. Since then, it has evolved into a critical material in modern technology.

Properties and Applications

Silicon carbide boasts several beneficial properties, such as:

  • High thermal conductivity
  • Extreme hardness
  • Chemical resistance
  • Low thermal expansion

These traits make it suitable for semiconductors, abrasives, ceramics, and even bulletproof armor.

The Importance of Silicon Carbide in Modern Industry

Usage in Electronics

SiC is essential in making high-efficiency semiconductor devices, particularly for power electronics. Its ability to handle high voltages and temperatures surpasses traditional silicon.

Role in Automotive Industry

Electric vehicles (EVs) use silicon carbide in inverters and onboard chargers, increasing power efficiency and reducing weight.

SiC in Aerospace and Defense

Due to its resilience and lightweight nature, SiC components are used in aircraft engines, radar systems, and missile components.

Raw Materials Required for Making Silicon Carbide

Silicon Sources

Silicon comes from high-purity quartz sand (SiO₂). The purity level must be tightly controlled to ensure product quality.

Carbon Sources

Carbon is usually introduced via petroleum coke or anthracite coal, depending on the desired SiC characteristics.

Purity and Quality Control

Both silicon and carbon must be carefully selected and purified to prevent unwanted reactions or impurities in the final product.

The Acheson Process: Traditional Method of Production

History of the Acheson Process

Invented by Edward Acheson, this method revolutionized the way SiC was manufactured and remains widely used today.

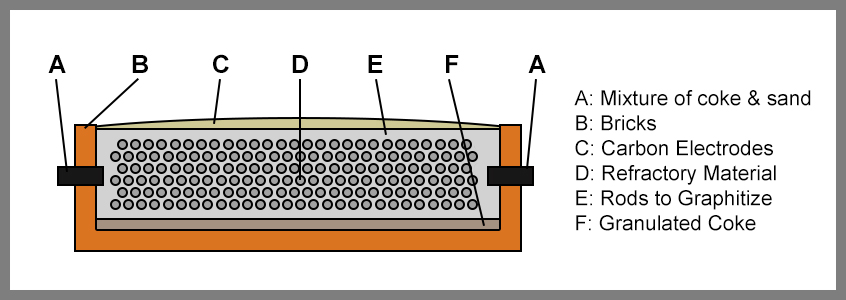

Step-by-Step Procedure

  1. Mix quartz sand and carbon in a specific ratio.
  2. Place the mixture in a graphite electric resistance furnace.
  3. Heat it up to ~2,500°C (4,532°F).
  4. SiC forms as the silicon reacts with carbon.

Equipment Involved

  • Electric resistance furnaces
  • Cooling chambers
  • Collection hoppers

Alternative Production Methods

Chemical Vapor Deposition (CVD)

Used for high-purity SiC, especially in thin-film applications. Reacts gases like silane (SiH₄) and methane (CH₄) at high temperatures.

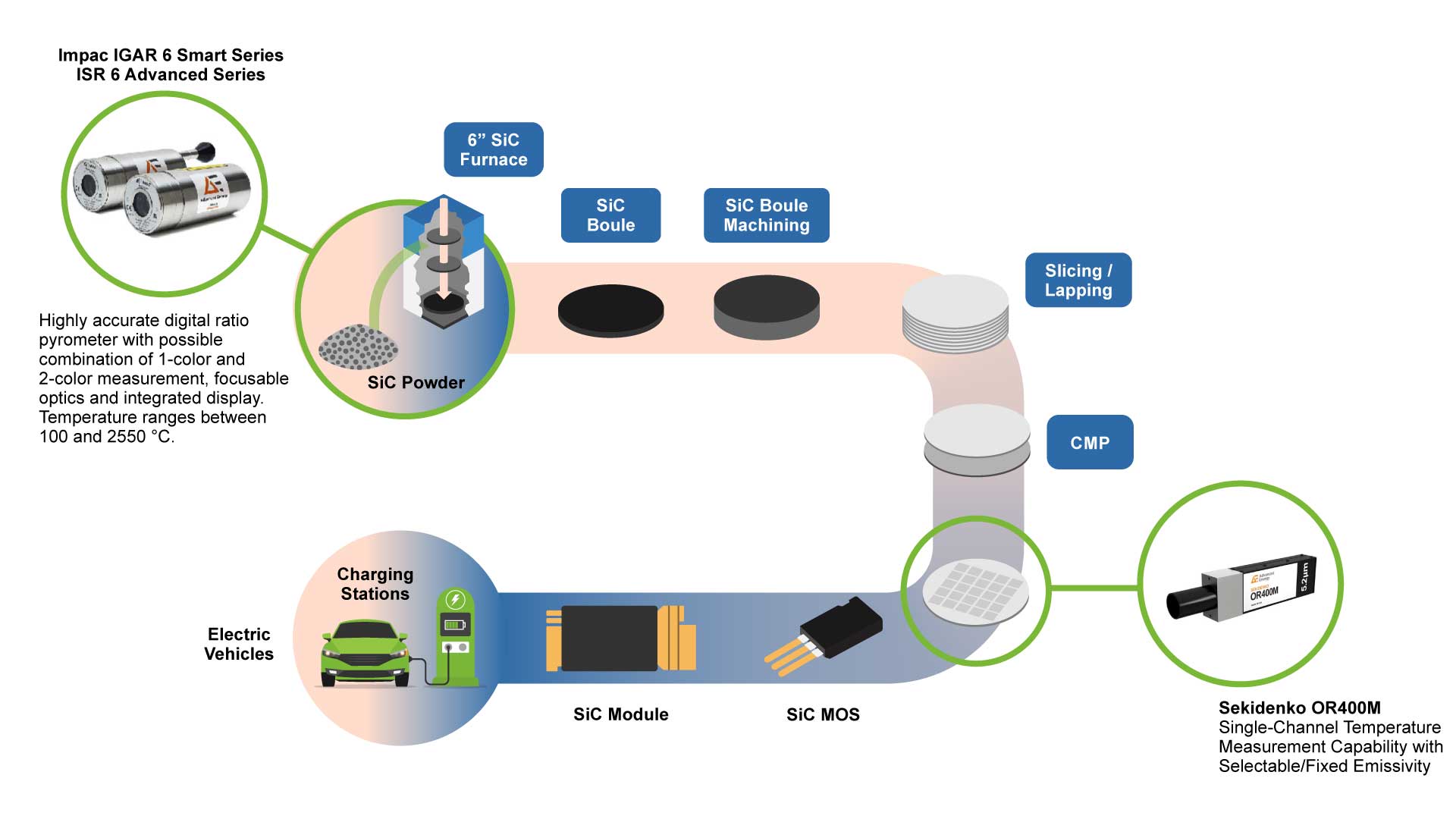

Physical Vapor Transport (PVT)

Ideal for producing large single SiC crystals, essential in wafer production.

Microwave Sintering

A modern technique using microwave energy to fuse SiC powder into dense ceramic parts with lower energy input.

Key Stages in the Silicon Carbide Manufacturing Process

Mixing and Preparation

The first step is to combine silicon and carbon sources in accurate proportions for consistent reaction rates.

High-Temperature Firing

The mixture is subjected to extreme heat. This stage determines the crystalline structure and density.

Cooling and Collection

Post-reaction, the furnace is cooled gradually to stabilize the SiC before it's extracted.

Formation of SiC Crystals

Crystallization Process

Once the reaction completes, silicon carbide starts forming as small, dark green to black crystals. These are embedded within the furnace mass and must be separated carefully. The crystallization happens in a zone of the furnace where the temperature is optimal—typically around 2,000 to 2,500°C.

Temperature and Pressure Control

Maintaining the correct temperature gradient is vital. Too much heat can lead to decomposition, while too little may result in incomplete reactions. Pressure is usually atmospheric, but advanced methods like CVD operate under vacuum or controlled environments.

Types of Crystals Formed

  • Alpha-SiC (hexagonal): Used in high-temperature applications.
  • Beta-SiC (cubic): Preferred in electronic devices due to better electron mobility.

Purification and Sizing of SiC

Removal of Impurities

After cooling, the silicon carbide is removed from the furnace. It's then subjected to acid leaching or heat treatments to remove residual silicon, carbon, and metallic impurities.

Crushing and Milling

Purified SiC crystals are crushed using jaw crushers or roll mills. The material is ground to different particle sizes depending on the end use—ranging from micro powders to coarse grains.

Grading by Particle Size

Once milled, the particles are sorted using sieves, air classifiers, or sedimentation techniques. Each grade of SiC is used for specific applications like abrasives, refractories, or electronic substrates.

Environmental Considerations in SiC Production

Energy Consumption

Producing silicon carbide, especially through the Acheson process, requires enormous amounts of energy. Furnaces can run for days at high temperatures, increasing the carbon footprint.

Emission Management

SiC plants use advanced filtration and scrubbing systems to manage emissions like CO₂, NOx, and silicon compounds. Proper control prevents environmental pollution.

Waste Disposal

Spent materials, contaminated dust, and off-spec batches are handled with strict disposal guidelines. Recycling methods are being explored to reduce landfill waste.

Cost Factors and Economic Impact

Raw Material Costs

Quartz sand and carbon sources are relatively inexpensive, but high purity grades required for electronics can drive up costs.

Manufacturing Overheads

Energy, labor, and specialized equipment make SiC production capital-intensive. Facilities must invest in quality control and environmental compliance.

Market Price of SiC

The global market for SiC is growing, especially in electric vehicles and renewable energy sectors. Prices vary widely based on purity and crystal type.

Innovations in Silicon Carbide Fabrication

Nano-SiC Development

Research is underway to create nanoscale SiC particles for advanced applications in nanocomposites and biomedical fields.

3D Printing Possibilities

Emerging 3D printing technologies are being explored to produce complex SiC ceramic components with less waste and faster turnaround.

Future Trends

Expect further growth in SiC usage in electric transport, green energy, and space technology, driven by performance and sustainability needs.

Applications of Silicon Carbide in Daily Life

Electronics and LED Devices

SiC chips operate efficiently under high voltages and temperatures, perfect for electric cars, renewable energy inverters, and LEDs.

High-Performance Brakes

SiC-reinforced ceramic brake discs are used in luxury and racing cars for superior heat resistance and performance.

Abrasives and Tools

SiC grains are common in grinding wheels, cutting discs, and sandpaper due to their hardness and sharp edges.

Frequently Asked Questions (FAQs)

1. What is silicon carbide made from?

Silicon carbide is made from silicon dioxide (usually quartz sand) and carbon (typically petroleum coke), combined at very high temperatures.

2. Is silicon carbide stronger than diamond?

No, diamond is harder than silicon carbide, but SiC is still one of the hardest known materials and is used in industrial cutting tools.

3. How is silicon carbide different from silicon?

Silicon is a pure element, while SiC is a compound. SiC is harder and can operate under higher voltages and temperatures compared to regular silicon.

4. Can silicon carbide be recycled?

Yes, used SiC materials from industrial processes can often be cleaned, ground, and reused in less demanding applications.

5. What are the environmental risks of producing SiC?

Major concerns include high energy use and emissions, but with proper controls, environmental impact can be minimized.

6. Where is silicon carbide used the most?

The biggest use is in electronics, especially power devices and electric vehicles, followed by abrasives and structural materials.

Conclusion

Silicon carbide is more than just a compound of silicon and carbon—it's a high-tech material shaping the future of electronics, transportation, and industrial manufacturing. From its humble beginnings in an electric furnace to its role in cutting-edge devices, SiC's journey is a story of innovation, endurance, and potential. With advancements in sustainability and fabrication techniques, the world will continue to benefit from this remarkable material for decades to come.
